Pipe conveyor system
With our product range, we offer you the ideal solution
Key Benefits
- Flexible conveying paths possible with horizontal, inclined, and vertical conveying
- Minimal space requirement
- Easy installation
- Any number of inlets and outlets
- Particularly gentle on products and dust-tight conveying
- Reliable, durable, and low-maintenance
- Conveying products: granules, pellets, flour, …

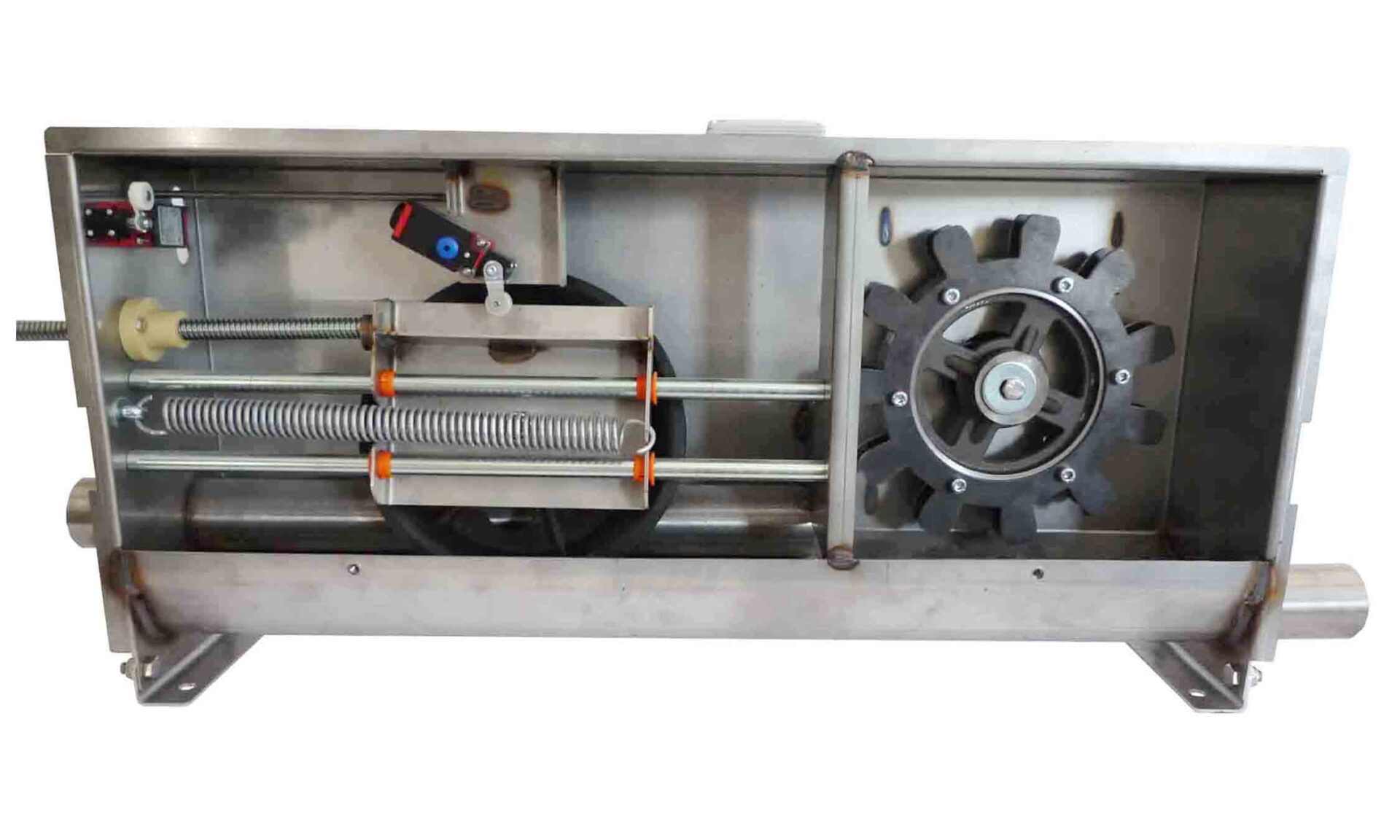

Drive Station
Standard stainless steel design with tensioning device, drive and deflection wheel, safety switch for housing cover and chain

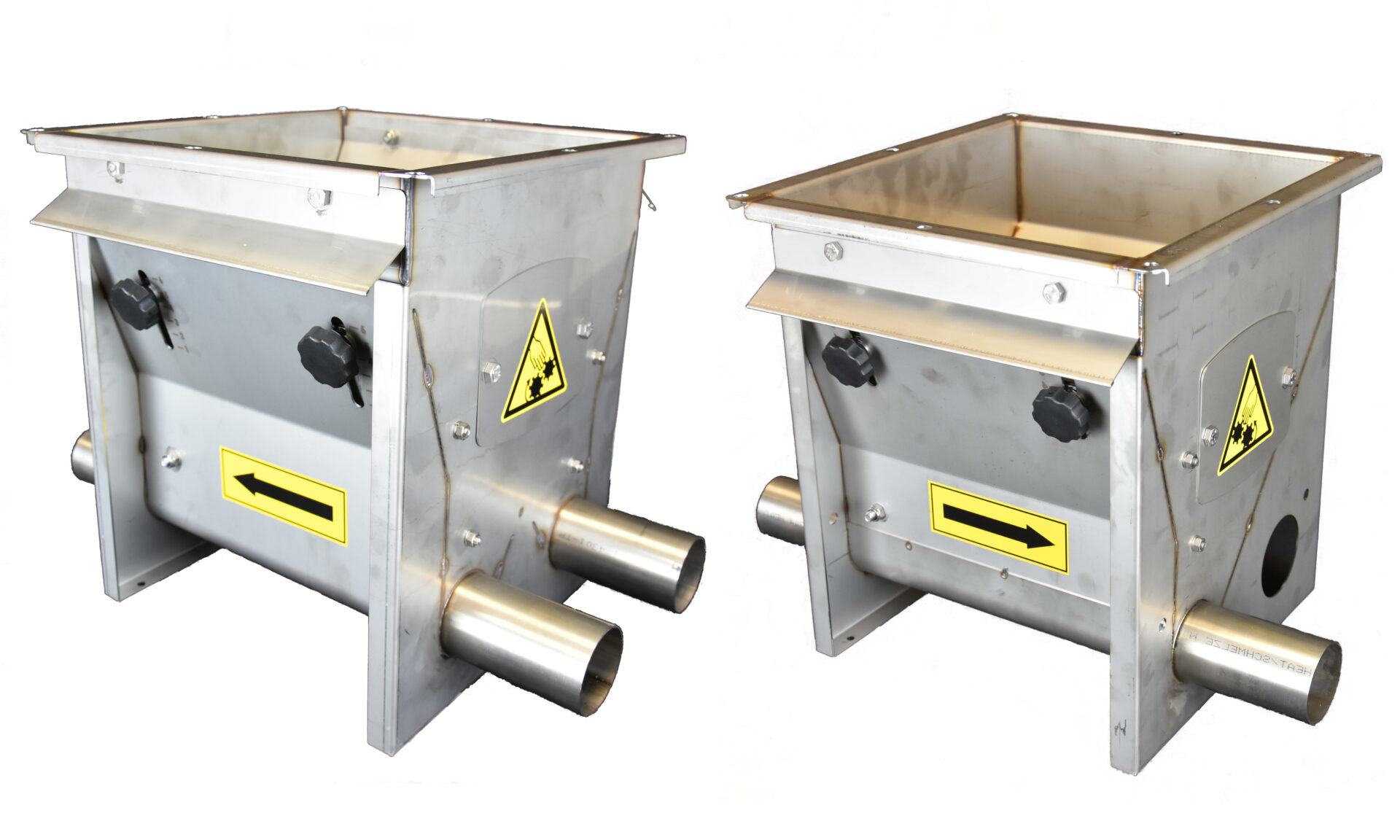

Dosing Unit
Made of stainless steel with dosing slide and vibrator for adjusting the conveying volume, cleaning and inspection opening, for 1- or 2-circuit conveying systems
90° Corner
Made of glass-fiber reinforced plastic (GRP) with sealed ball bearing and stainless steel axle (Ø60).
Made of aluminum with cast impeller and plain bearing (Ø100).
Also available in 135° and 360° versions.

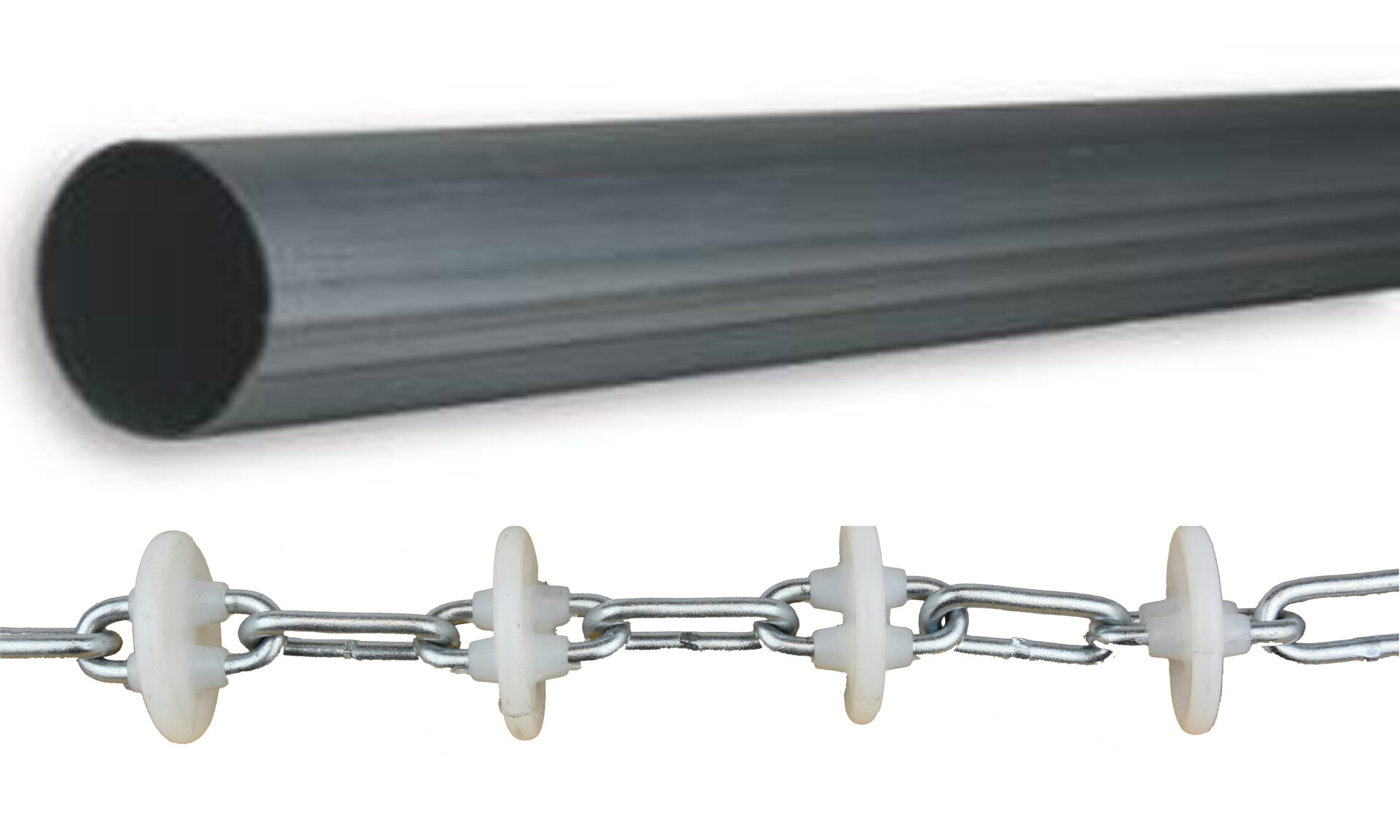

Conveying Pipe with Chain
Outer pipe made of galvanized steel or stainless steel with internal conveying chain made of high-strength steel with plastic flights
Outlet
With shut-off valve, available with and without cable operation

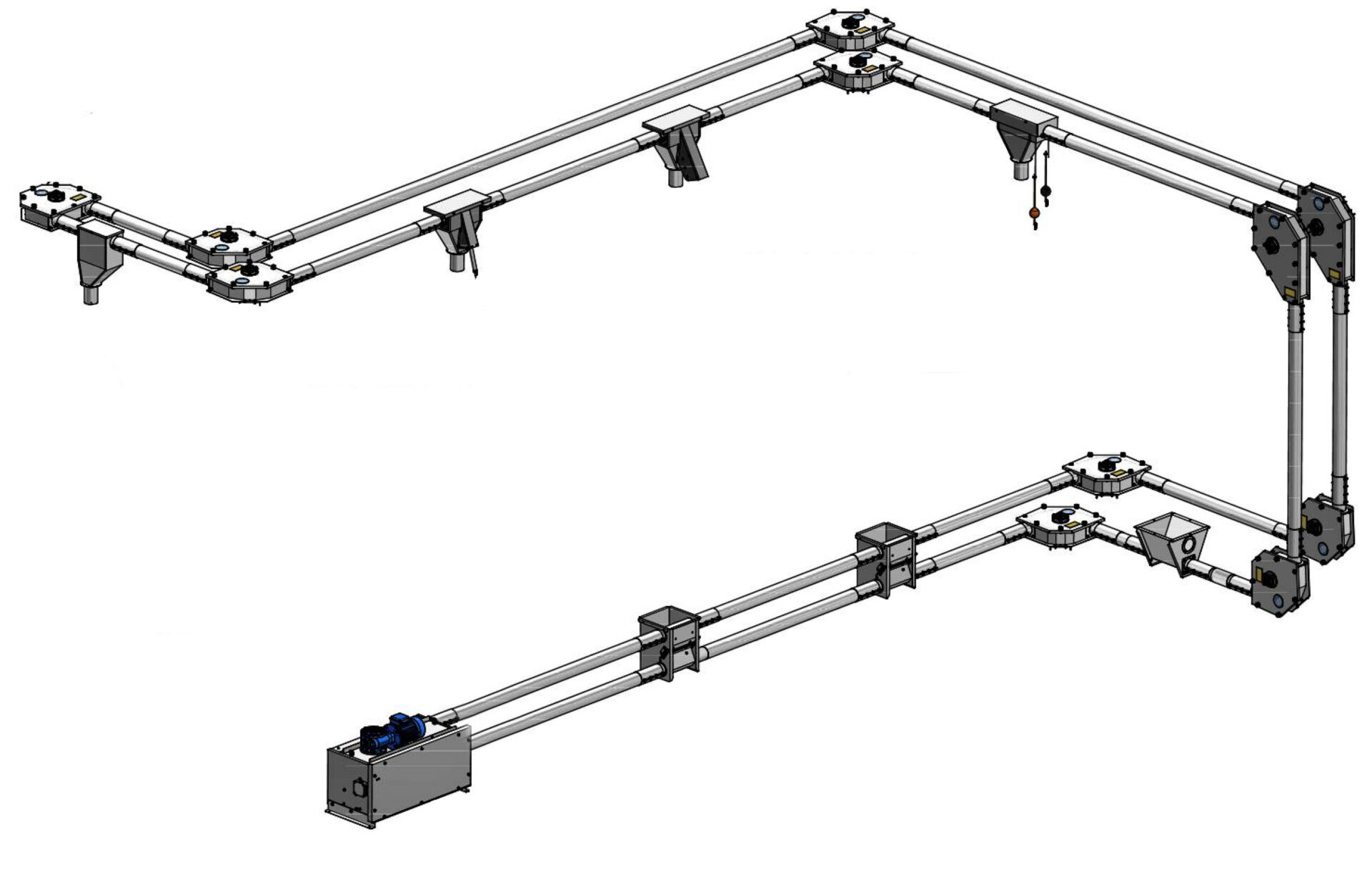

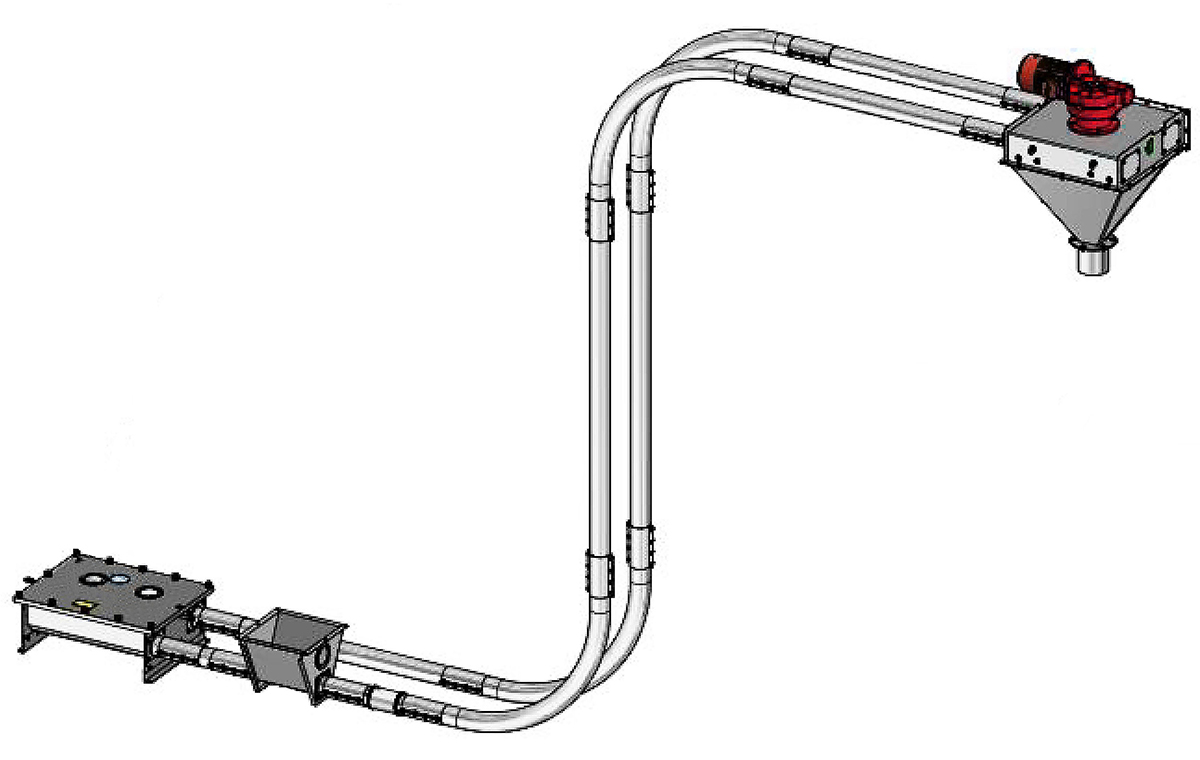

Design Examples for Conveying Circuits
| Further sizes with a diameter up to Ø150 mm and a conveying capacity up to 30 m³/h available |
|---|
| Diameter | 60 mm | 100 mm |
|---|---|---|
| Max. Length | 400 m | 280 m |
| Drive Power | 1.1 – 2.2 kW | 2.2 – 3.0 kW |
| Capacity | 4.0 m³/h | 8.0 m³/h |
